Floorplan - 2015 Starcraft Autumn Ridge 346RESA
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+37- Sale Price: $14,499
- MSRP: $17,699
- Save: $3,200
-
Sleeps 8
-
3 Slides
-
Rear EntertainmentKitchen Island
-
38ft Long
-
8,540 lbs
-
Sandstone, Mahogany, Amaretto

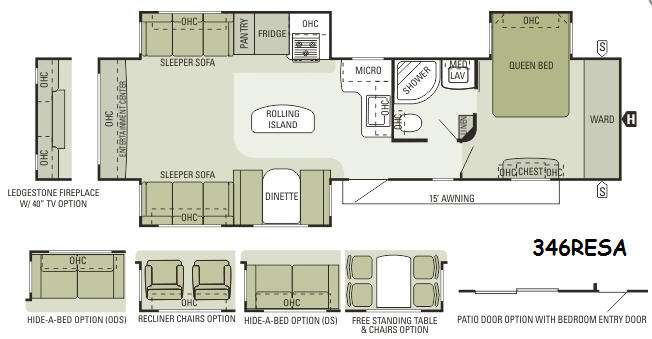

346RESA Floorplan
Specifications
| Sleeps | 8 | Slides | 3 |
| Length | 38 ft 3 in | Ext Width | 8 ft |
| Ext Height | 11 ft 2 in | Int Height | 6 ft 9 in |
| Interior Color | Sandstone, Mahogany, Amaretto | Hitch Weight | 1230 lbs |
| GVWR | 10750 lbs | Dry Weight | 8540 lbs |
| Cargo Capacity | 2210 lbs | Fresh Water Capacity | 69 gals |
| Grey Water Capacity | 33 gals | Black Water Capacity | 33 gals |
| Tire Size | 15" |
Description
You will enjoy plenty of space in this Starcraft Autumn Ridge travel trailer model 346RESA. It features triple slides with dual opposing ones in the main living area.
Enter and enjoy the open concept combined kitchen and living room. There is a booth dinette and sleeper sofa slide on the left just inside the door. The rear wall features a full wall entertainment center with Ledgestone fireplace option including a 40" TV. On the opposite wall you will have a second sleeper sofa slide-out that also includes some of the kitchen amenities.
In the center you will see a rolling island that provides added counter space when and where ever you need it. The kitchen features a pantry, refrigerator, and three burner range with overhead cabinet as part of the sleeper sofa slide opposite the door. There is also a kitchen sink and microwave located along the interior wall. You will find that there is plenty of storage with overhead cabinets, and base cabinets plus drawers.
To the right of the entry door there is a side aisle bath with corner shower, toilet, sink with medicine cabinet, and corner linen cabinet too. Dual entry doors allows you to access the bathroom from within the front master bedroom, or from the hall.
The front bedroom features a queen bed slide, wardrobe across the front of the trailer, and a chest opposite the bed with overhead storage, and so much more!
Some of the options that you can choose are a free standing dinette, hide-a-bed sofa, recliner chairs in place of a sleeper sofa, and of course the Ledgestone fireplace with TV above.
Features
- 3/8" decking on roof
- 5/8" tongue-and-groove plywood main floor decking
- 2" x 3" longitudinal floor joists on 16"-18" centers
- 81" living room ceiling height
- Hardwood cabinetry stile with screwed construction
- I-Class cambered structural-steel I-beam frame
- In-floor ducted heat
- One-piece seamless rubber roof material
- Roof rafters constructed of residential-style tapered 4-1/2" trusses
- 15" radial tires
- 30" x 72" radius-cornered main entry door with screen door
- 120V G.F.C.I. protected exterior receptacle
- Black tank flush
- Bumper with drain hose carrier and end caps
- Cable and satellite TV prep
- Crank-up HDTV antenna with signal booster
- E-Z Lube axles
- Galvanized steel wheel wells (insulated on non-slide models)
- Nev-R-Adjust electric brakes
- Large folding grab handle
- Outside kitchen with bumper-mount grill, refrigerator and sink (309BHL and 329BHU)
- Outside TV prep
- Patio awning
- Prep for bumper-mount grill
- Propane bottle cover made of molded ABS
- Roof-mounted antenna for radio
- Security lights (2)
- Spare tire with carrier
- Stabilizer jacks (4)
- Starmaxx pass-through storage with tool hooks and courtesy light
- Step light at entry door
- Tinted safety-glass windows
- A/C Chillgrille
- Auto-ignition furnace with wall thermostat
- Ball-bearing drawer guides, 50-lb. capacity with full-drawer extension
- Command Center with centrally located switches
- Decorative lighting package
- Double-over-double bunk bed with 600-lb. bunk capacities (278BH and 289BHS)
- Hinged storage lid in bedroom
- Honey Glazed Cherry wood cabinetry
- Marine-grade table leg and pedestal base
- Multi-media sound system AM/FM/CD stereo with MP3 input jack
- Overhead cabinetry in slideout room above sofa
- Pillow-top mattress – queen (king-sized in 286KBS)
- Pleated shades
- Porcelain toilet with foot flush
- Quilted bunk mats – Denver Mattress
- Radius shower (select models)
- Shaw carpet with R2X stain and soil resistance (slideout models)
- Sleeper sofa (select models)
- 3-burner range with 9,000-BTU SuperBurner and piezo igniter
- Black metal refrigerator inserts
- Deep storage drawers under booth dinette seat (2)
- Double drawer with integrated silverware dividers
- Extra large picture window at dinette
- Flush-mounted refrigerator
- Kitchen backsplash
- Oversized 21” oven
- Pots and pans drawer below oven (select models)
- Range hood with light and exhaust fan
- Residential-style high-rise faucet with pull-out sprayer
- Sink cover
- Spice rack storage integrated into valance
- 8 cu. ft. refrigerator
- 12V dual USB outlet
- CD/DVD with MP3 and iPod input jack
- Denver Mattress pillow-top mattress
- Electric awning with LED lighting
- Electric tongue jack
- LED accent lighting under kitchen countertop area
- Range cover
- Spare tire cover
- Xtend-A-Bed (on 74” beds)
- 21” round skylight with LED lighting in living room/kitchen
- Aluminum rims
- Glass shower doors
- Hardwood refrigerator door inserts
- Headboard
- Raised-panel overhead cabinetry in kitchen
- Residential-style kitchen tile backsplash
- Solid-surface kitchen countertops with undermount sink
- Solid-surface sink covers
- Canadian Standards
- 21” round skylight with LED lighting in living room/kitchen
- 24” LED TV in bedroom with inside/outside bracket
- 28” LED TV (235FB and 278BH)
- 32” LED TV (n/a 235FB and 278BH)
- 50-amp service with 2nd A/C prep (n/a 235FB, 245DS and 278BH)
- 80 Watt Portable Solar Kit
- Aluminum rims (standard with Premier Package)
- Arctic Package: Insulated, heated and enclosed underbelly; foil insulation in roof
- Arctic Package with full-foil wrap
- Bumper-mount grill (select models)
- Customer Convenience Package with 15,000-BTU A/C
- Exterior fiberglass sidewalls (two-toned) with frameless windows
- Free-standing table with hidden leaf and four chairs (select models)
- Front and rear electric stabilizer jacks
- Full bedroom wall with pocket door and mirror (235FB, 245DS and 278BH)
- Glass shower door (standard with Premier Package)
- Hide-a-bed sofa – tri-fold design (n/a 235FB, 245DS and 278BH)
- Hide-a-bed sofa – tri-fold design in lieu of rear dinette in bunk area (329BHU)
- Ledgestone fireplace with 39” TV (315RKS, 325RLSA and 346RESA)
- LED interior lighting package
- Recliner chairs (2) in lieu of doorside sleeper sofa (346RESA)
- Recliner chairs (2) in lieu of sleeper sofa (286KBS)
- Recliner chairs (2) in lieu of swivel rockers (2) (265RLS, 315RKS and 325RLSA)
- Roof ladder
- Second 13,500 BTU A/C (Requires 50 AMP Service)
- Second doorside hide-a-bed (346RESA)
- Sleeper sofa (235FB, 245DS and 278BH)
- Stainless Steel Package: Oven/stove top, microwave and refrigerator inserts
- Thermal-pane patio door with bedroom entry door (315RKS, 325RLSA and 346RESA)
- Thermal-pane windows
- Tire Pressure Monitoring System (Tire Linc) - (Aluminum Rims Required)
- Wireless Back-up Camera System
